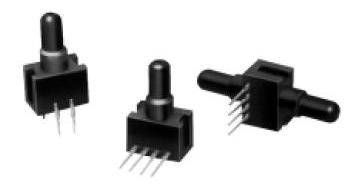

| HoneyWell 24、26压力传感器 |
24系列：不带温补，26系列：带温补 |
型号
（G：表压、D：差压） |
压力范围psi |
满量程输出mV |
灵敏度mV/psi |
过压psi，max |
| Min. |
TYP. |
Max. |
| 24PCEFA6G/D |
0.5 |
24 |
35 |
46 |
70 |
20 |
| 24PCAFA6G/D |
1.0 |
30 |
45 |
60 |
45 |
20 |
| 24PCBFA6G/D |
5.0 |
85 |
115 |
145 |
23 |
20 |
| 24PCCFA6G/D |
15 |
165 |
225 |
285 |
15 |
45 |
| 24PCDFA6G/D |
30 |
240 |
330 |
420 |
11 |
60 |
| 24PCFFA6G/D |
100 |
156 |
225 |
294 |
23 |
100 |
| 24PCGFA6G/D |
250 |
145 |
212 |
280 |
0.85 |
500 |
| 26PCAFA6G/D |
1.0 |
14.7 |
16.7 |
18.7 |
16.7 |
20 |
| 26PCBFA6G/D |
5.0 |
47 |
50 |
53 |
10 |
20 |
| 26PCCFA6G/D |
15 |
97 |
100 |
103 |
6.67 |
45 |
| 26PCDFA6G/D |
30 |
97 |
100 |
103 |
3.33 |
60 |
| 26PCFFA6G/D |
100 |
95 |
100 |
105 |
1.00 |
200 |
|
|

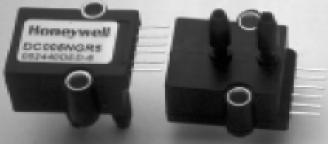

| HoneyWell ASG 超低压压力传感器 DC 带放大系列 |
 |
C4：0.25-4.25VDC输出，5VDC供电
R4：0.25-4.25VDC输出，7-35VDC供电
R5：1.0-6.0VDC输出，7-35VDC供电 |
| 型号 |
压力范围
（英寸水柱 ） |
供电电压
(Vdc） |
整体误差 |
偏置输出
(Vdc) |
满量程输出
(VdC) |
过载（TYP/Max）
英寸水柱 |
| 典型值 |
最大值 |
精度 |
| DC001NGC4(表压) |
1 |
5±0.1 |
±2% |
±3% |
0.25% |
0.25 |
4 |
100/200 |
| DC001NDC4(差压) |
1 |
5±0.1 |
±2% |
±3% |
0.25% |
2.25 |
±2 |
100/200 |
| DC002NGC4(表压) |
2 |
5±0.1 |
±1.5% |
±2.5% |
0.25% |
0.25 |
4 |
100/200 |
| DC002NDC4(差压) |
2 |
5±0.1 |
±1.5% |
±2.5% |
0.25% |
2.25 |
±2 |
100/200 |
| DC005NGC4(表压) |
5 |
5±0.1 |
±1.0% |
±2.0% |
0.25% |
0.25 |
4 |
150/300 |
| DC005NDC4(差压) |
5 |
5±0.1 |
±1.0% |
±2.0% |
0.25% |
2.25 |
±2 |
150/300 |
| DC010NGC4(表压) |
10 |
5±0.1 |
±1.0% |
±2.0% |
0.25% |
0.25 |
4 |
150/300 |
| DC010NDC4(差压) |
10 |
5±0.1 |
±1.0% |
±2.0% |
0.25% |
2.25 |
±2 |
150/300 |
| DC020NGC4(表压) |
20 |
5±0.1 |
±1.0% |
±2.0% |
0.25% |
0.25 |
4 |
300/450 |
| DC020NDC4(差压) |
20 |
5±0.1 |
±1.0% |
±2.0% |
0.25% |
2.25 |
±2 |
300/450 |
| DC030NGC4(表压) |
30 |
5±0.1 |
±1.0% |
±2.0% |
0.25% |
0.25 |
4 |
450/600 |
| DC030NDC4(差压) |
30 |
5±0.1 |
±1.0% |
±2.0% |
0.25% |
2.25 |
±2 |
450/600 |
|
|
|
